Thermal Gap Filler Pads
TGP8000HV

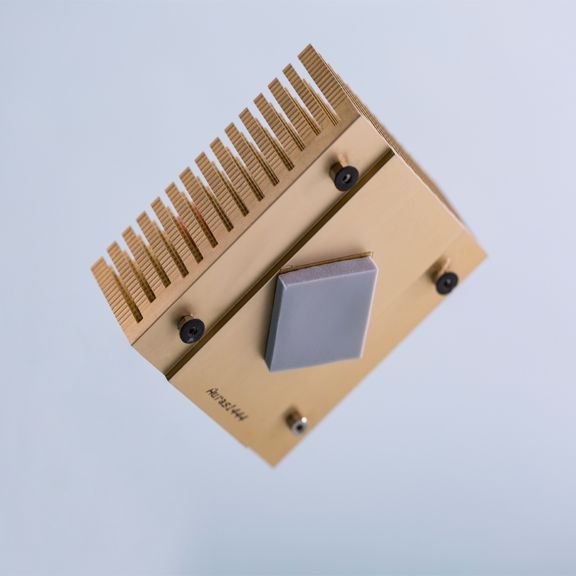

Low thermal impedance, higher breakdown voltage than the plain TGP8000, and exhibits low oil bleeding and outgassing. (Grey color, 0.2 Thermal Impedance, 8.0 Thermal Conductivity, Hardness 60 on Shore 00)
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Honeywell Thermal Gap Filler Pads (TGPs) provide high thermal performance with ease of use for many applications. Ultra-high compressibility enables low stress and excellent conformity to mating surfaces. Honeywell TGP models are naturally tacky, and require no additional adhesive which could inhibit thermal performance. TGP models have been designed to minimize thermal resistance at interfaces, and maintain effective performance through reliability testing. TGP models are silicone based, therefore they offer a certain anti-shock effect, with electrical isolation and non-flammability.Typical Applications• Consumer electronics• Telecommunications & network servers• Automotive electronics• Power devices & modules• Semiconductor logic & memoryFeatures• High thermal performance• Ultra-high compressibility for low stress applications• Excellent surface wetting for low contact resistance• High reliability• Electrically insulating
Specifications
Physical Properties
- Color
- Grey
- Hardness
- 60 Shore00, Test Method ASTM D2240
- Shelf Life
- 12 months Year
- Specific Gravity
- 3.5, Test Method ASTM D792
- Thickness (mm)
- 0.5-5, Test Method ASTM D374
Thermal Properties
- Thermal Conductivity
- 8.0 W/m-K, Test Method ASTM D5470
- Thermal Impedance
- 0.20 °C·in²/W, 1 mm at 10 psi, Typical Value, Test Method ASTM D5470
Electrical Properties
- Dielectric Constant
- 8.3 at 1MHz, Test Method ASTM D150
- Volume Resistivity
- 6.47x1015 ohm-cm, Test Method ASTM D257
Flammability Properties
- Flammability
- V-0, Test Method UL94
General Information
- Application
- High Compressibility
- Key Features
- High Breakdown Voltage
Other
- Other Notes
- 8000 V/mm, Test Method ASTM D149 Dielectric Strength
Physical Properties
- Color
- Grey
- Hardness
- 60 Shore00, Test Method ASTM D2240
- Shelf Life
- 12 months Year
- Specific Gravity
- 3.5, Test Method ASTM D792
- Thickness (mm)
- 0.5-5, Test Method ASTM D374
Thermal Properties
- Thermal Conductivity
- 8.0 W/m-K, Test Method ASTM D5470
- Thermal Impedance
- 0.20 °C·in²/W, 1 mm at 10 psi, Typical Value, Test Method ASTM D5470
Electrical Properties
- Dielectric Constant
- 8.3 at 1MHz, Test Method ASTM D150
- Volume Resistivity
- 6.47x1015 ohm-cm, Test Method ASTM D257
Flammability Properties
- Flammability
- V-0, Test Method UL94
General Information
- Application
- High Compressibility
- Key Features
- High Breakdown Voltage
Other
- Other Notes
- 8000 V/mm, Test Method ASTM D149 Dielectric Strength
- Color : Grey
- Thermal Conductivity : 8.0 W/m-K, Test Method ASTM D5470
- Thermal Impedance : 0.20 °C·in²/W, 1 mm at 10 psi, Typical Value, Test Method ASTM D5470
- Specific Gravity : 3.5, Test Method ASTM D792
- Thickness (mm) : 0.5-5, Test Method ASTM D374
- Shelf Life : 12 months Year
- Hardness : 60 Shore00, Test Method ASTM D2240
- Dielectric Constant : 8.3 at 1MHz, Test Method ASTM D150
- Volume Resistivity : 6.47x1015 ohm-cm, Test Method ASTM D257
- Flammability : V-0, Test Method UL94
- Key Features : High Breakdown Voltage
- Application : High Compressibility
- Other Notes : 8000 V/mm, Test Method ASTM D149 Dielectric Strength
