Solstice® HFO Blends

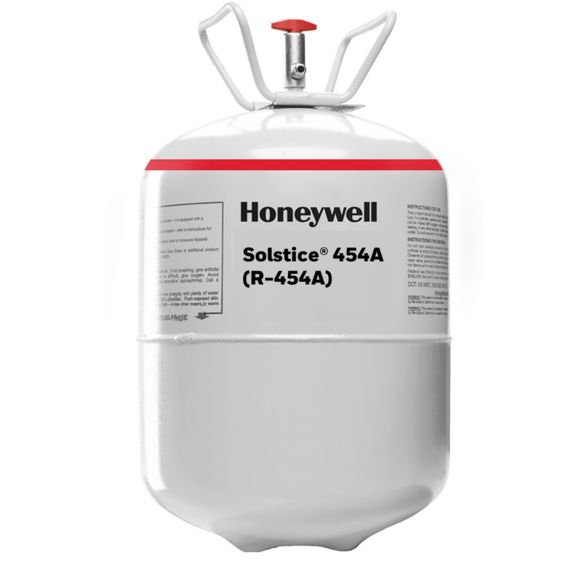

Solstice® 454A - (R-454A)
Solstice® 454A (R-454A) is a non-ozone-depleting, zeotropic blend designed as a low GWP alternative to R-404A in refrigeration applications.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Solstice® 454A (R-454A) is a non-ozone-depleting, zeotropic blend designed as a low GWP alternative to R-404A in refrigeration applications. Solstice® 454A demonstrates approximately 6% improved efficiency, 8% better capacity and has 94% lower GWP than R-404A.
With its environmental qualities and an evaporator glide of ~8oF, R-454A can be an effective long-term refrigeration solution in many applications:
• Low and medium-temperature supermarket refrigeration systems
• Retail food condensing units
• Cold storage
• Industrial Process Refrigeration (non-chiller)
• Industrial Process Refrigeration (chillers)
*Maximum 200lb in applications per EPA Technology Transitions Rule
With its environmental qualities and an evaporator glide of ~8oF, R-454A can be an effective long-term refrigeration solution in many applications:
• Low and medium-temperature supermarket refrigeration systems
• Retail food condensing units
• Cold storage
• Industrial Process Refrigeration (non-chiller)
• Industrial Process Refrigeration (chillers)
*Maximum 200lb in applications per EPA Technology Transitions Rule
Specifications
General Information
- Application
- Cold Storage
- Food Retail - Condensing Unit
- Industrial Process Refrigeration - Non Chiller
- Industrial Process Refrigeration – Chillers: Low or Medium Temperature
- ASHRAE Number
- R-454A
- Brand
- Solstice®
- Formula
- R-1234yf - 35%
- R-32 - 65%
- Refrigerant Class
- HFO Blend
Physical Properties
- Appearance
- Colorless
- Critical Density
- 28.49 lbm/ft3
- Critical Pressure
- 671.1 psia
- Critical Volume
- 0.035 ft3/lbm
- Liquid Density
- 63.73 lbm/ft3 at 77°F
- 69.75 lbm/ft3 at 32°F
- Liquid Thermal Conductivity
- 0.048 Btu/h-ft-R at 77°F
- Liquid Viscosity
- 0.000082 lbm/ft-sec at at 77°F
- Lower Flammable Limit
- 8.4%, 17.5lb/1000 ft3
- Molecular Weight
- 80.5 kg/kmol
- Vapor Density
- 0.212 lbm/ft3 at 0 psig (Boiling Point)
- 3.003 lbm/ft3 at 77°F
- Vapor Thermal Conductivity
- 0.008 Btu/h-ft-R at 77°F
- Vapor Viscosity
- 0.000008 lbm/ft-sec at 77°F
Temperature
- Boiling Point/Range
- -54.1°F
- Critical Temperature
- 179.1°F
Safety & Environment
- Global Warming Potential
- 239
- Ozone Depletion Potential
- 0
Standards & Approvals
- ASHRAE Safety Classification
- A2L (Mildly flammable)
General Information
- Application
- Cold Storage
- Food Retail - Condensing Unit
- Industrial Process Refrigeration - Non Chiller
- Industrial Process Refrigeration – Chillers: Low or Medium Temperature
- ASHRAE Number
- R-454A
- Brand
- Solstice®
- Formula
- R-1234yf - 35%
- R-32 - 65%
- Refrigerant Class
- HFO Blend
Physical Properties
- Appearance
- Colorless
- Critical Density
- 28.49 lbm/ft3
- Critical Pressure
- 671.1 psia
- Critical Volume
- 0.035 ft3/lbm
- Liquid Density
- 63.73 lbm/ft3 at 77°F
- 69.75 lbm/ft3 at 32°F
- Liquid Thermal Conductivity
- 0.048 Btu/h-ft-R at 77°F
- Liquid Viscosity
- 0.000082 lbm/ft-sec at at 77°F
- Lower Flammable Limit
- 8.4%, 17.5lb/1000 ft3
- Molecular Weight
- 80.5 kg/kmol
- Vapor Density
- 0.212 lbm/ft3 at 0 psig (Boiling Point)
- 3.003 lbm/ft3 at 77°F
- Vapor Thermal Conductivity
- 0.008 Btu/h-ft-R at 77°F
- Vapor Viscosity
- 0.000008 lbm/ft-sec at 77°F
Temperature
- Boiling Point/Range
- -54.1°F
- Critical Temperature
- 179.1°F
Safety & Environment
- Global Warming Potential
- 239
- Ozone Depletion Potential
- 0
Standards & Approvals
- ASHRAE Safety Classification
- A2L (Mildly flammable)
- ASHRAE Number : R-454A
- Refrigerant Class : HFO Blend
- Formula : R-1234yf - 35%|R-32 - 65%
- Brand : Solstice®
- Application : Cold Storage|Food Retail - Condensing Unit|Industrial Process Refrigeration - Non Chiller|Industrial Process Refrigeration – Chillers: Low or Medium Temperature
- Vapor Viscosity : 0.000008 lbm/ft-sec at 77°F
- Vapor Thermal Conductivity : 0.008 Btu/h-ft-R at 77°F
- Vapor Density : 0.212 lbm/ft3 at 0 psig (Boiling Point)|3.003 lbm/ft3 at 77°F
- Molecular Weight : 80.5 kg/kmol
- Lower Flammable Limit : 8.4%, 17.5lb/1000 ft3
- Liquid Viscosity : 0.000082 lbm/ft-sec at at 77°F
- Liquid Thermal Conductivity : 0.048 Btu/h-ft-R at 77°F
- Liquid Density : 63.73 lbm/ft3 at 77°F|69.75 lbm/ft3 at 32°F
- Critical Volume : 0.035 ft3/lbm
- Critical Pressure : 671.1 psia
- Critical Density : 28.49 lbm/ft3
- Appearance : Colorless
- Critical Temperature : 179.1°F
- Boiling Point/Range : -54.1°F
- Ozone Depletion Potential : 0
- Global Warming Potential : 239
- ASHRAE Safety Classification : A2L (Mildly flammable)
