Foam Blowing Agents
Solstice® Liquid Blowing Agent
Solstice® LBA has a global warming potential (GWP) of 1, which is 99.9% lower than those HFCs used in the industry. Solstice LBA outperforms alternative blowing agents in foam and environmental performance.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

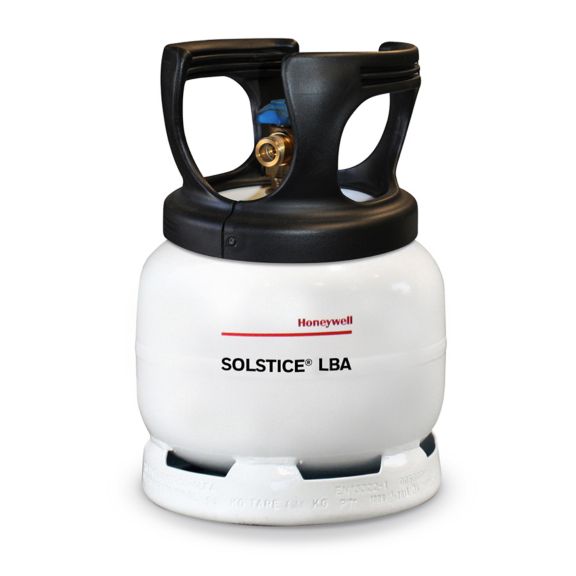

Solstice® Liquid Blowing Agent (LBA) is our latest advancement in foam blowing agent technology. Based on hydrofluoro-olefin (HFO) technology, Solstice LBA has a global warming potential (GWP) of 1, 99.9% lower than HFC blowing agents. It is a cost-effective replacement for other liquid foam blowing agents. Solstice Solstice LBA is:
- Non-ozone-depleting
- Nonflammable (ASTM E-681 and EU A11)
- Listed under the U.S. EPA’s Significant New Alternatives Policy (SNAP) program to replace ozone-depleting substances
- Listed on the TSCA inventory/registered under REACH
- VOC-exempt (per U.S. EPA)
Specifications
General Information
- Application
- Other Foam Applications
- Panels/Boardstock
- Refrigerator/Freezer Insulation

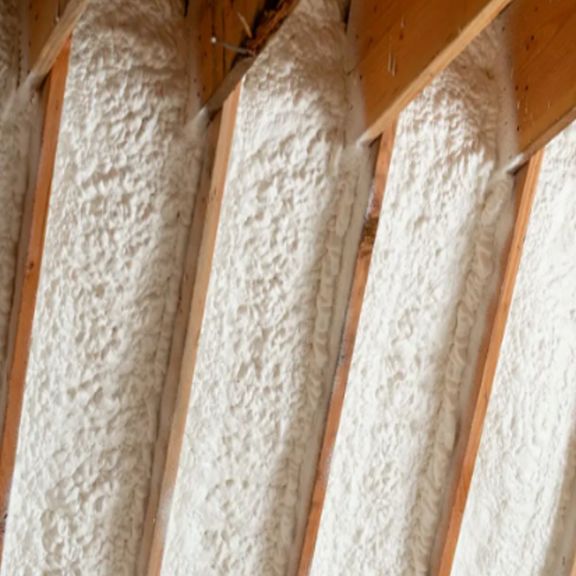

- Spray Foam Insulation
- ASHRAE Number
- 34
- Brand
- Solstice®
- Linear Formula
- trans-CF3CH=CHCl
- Synonyms
- Trans-1-Chloro-3,3,3-trifluoropropene
Physical Properties
- Latent Heat of Vaporization
- 45.18 cal/g at B.P.
- 81.33 Btu/lb at B.P.
- Molecular Weight
- 130.5
- Saturated Liquid Density
- 1.25 g/cm3 at 30 °C
- 78.07 lb/ft3 at 86 °F
- Specific Heat of Saturated Liquid
- 0.298 Btu/lb at 86 ⁰F, at Cp
- 298 cal/kg at 30 ⁰C, at Cp
- Specific Heat of Saturated Vapor
- 0.202 Btu/lb at 86 ⁰F, at Cp
- 202 cal/kg at 30 ⁰C, at Cp
Temperature
- Boiling Point/Range
- 19 °C at 1 Atm
- 66 °F at 1 Atm
Safety & Environment
- Global Warming Potential
- 1
Standards & Approvals
- ASHRAE Safety Classification
- A2L
General Information
- Application
- Other Foam Applications
- Panels/Boardstock
- Refrigerator/Freezer Insulation
- Spray Foam Insulation
- ASHRAE Number
- 34
- Brand
- Solstice®
- Linear Formula
- trans-CF3CH=CHCl
- Synonyms
- Trans-1-Chloro-3,3,3-trifluoropropene
Physical Properties
- Latent Heat of Vaporization
- 45.18 cal/g at B.P.
- 81.33 Btu/lb at B.P.
- Molecular Weight
- 130.5
- Saturated Liquid Density
- 1.25 g/cm3 at 30 °C
- 78.07 lb/ft3 at 86 °F
- Specific Heat of Saturated Liquid
- 0.298 Btu/lb at 86 ⁰F, at Cp
- 298 cal/kg at 30 ⁰C, at Cp
- Specific Heat of Saturated Vapor
- 0.202 Btu/lb at 86 ⁰F, at Cp
- 202 cal/kg at 30 ⁰C, at Cp
Temperature
- Boiling Point/Range
- 19 °C at 1 Atm
- 66 °F at 1 Atm
Safety & Environment
- Global Warming Potential
- 1
Standards & Approvals
- ASHRAE Safety Classification
- A2L
- ASHRAE Number : 34
- Synonyms : Trans-1-Chloro-3,3,3-trifluoropropene
- Linear Formula : trans-CF3CH=CHCl
- Brand : Solstice®
- Application : Other Foam Applications|Panels/Boardstock|Refrigerator/Freezer Insulation|Spray Foam Insulation
- Specific Heat of Saturated Vapor : 0.202 Btu/lb at 86 ⁰F, at Cp|202 cal/kg at 30 ⁰C, at Cp
- Specific Heat of Saturated Liquid : 0.298 Btu/lb at 86 ⁰F, at Cp|298 cal/kg at 30 ⁰C, at Cp
- Saturated Liquid Density : 1.25 g/cm3 at 30 °C|78.07 lb/ft3 at 86 °F
- Molecular Weight : 130.5
- Latent Heat of Vaporization : 45.18 cal/g at B.P.|81.33 Btu/lb at B.P.
- Boiling Point/Range : 19 °C at 1 Atm|66 °F at 1 Atm
- Global Warming Potential : 1
- ASHRAE Safety Classification : A2L
